Jimani Laser Engraving X/Y Tooling Plate

Jimani recently introduced a new X/Y tooling plate for laser engravers in partnership with Sherline.  We want to share some additional information about some accessories that help make this X/Y table extremely useful for laser engraving.

The Sherline ¼” Hold Down Set was designed to be used with our Laser Engraving Tooling Plate (P/N 35610LAZ) and our ROTARY TABLE “3D SCANNING PLATE” (P/N’s 37258, 372510, & 372512). Both of these accessories have ¼-20 threaded holes for clamping and locating parts.

When laser engraving or scanning parts, there is no force being exerted on the part. In the laser engraving application, the clamping system is there to ensure that the fixture being used to engrave the parts does not move. In the laser scanning application, the clamp is being used to hold the part stationary while it is being scanned and/or rotated.

When using the clamps for laser engraving, you can either clamp the fixture directly to the tooling plate as shown in photo#3, or you can use the clamps to wedge the fixture against the locating pins as shown in picture #4.

 Photos #1 thru #4 show a typical fixture layout with both clamping options.

laser_marking_xy_table_8
Photo #1: Placing ¼” locating pins in the tooling plate.
laser_marking_xy_table_2

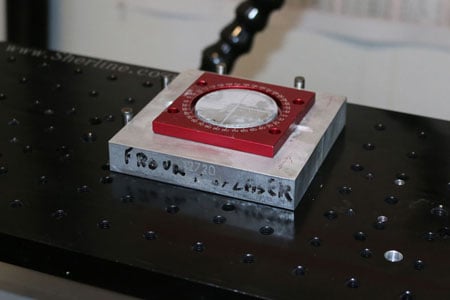

Photo #2: Locating engraving fixture against the locating pins.
laser_marking_xy_table_3

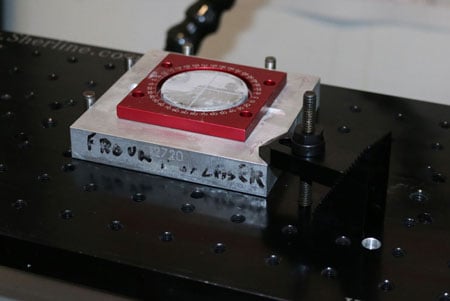

Photo #3: Clamping the fixture to the tooling plate.
laser_marking_xy_table_4

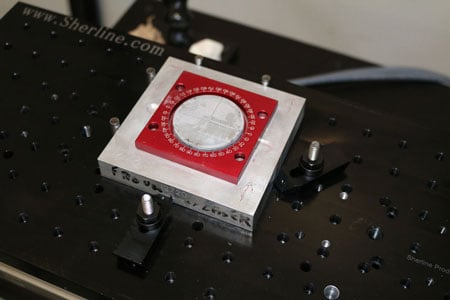

Photo #4: Using the clamps to wedge the fixture against the locating pins.

When you are clamping a part or fixture, you always want the tip of the step block clamp which is on the fixture, to be lower than the back of the clamp which is on the step block. This will ensure that the clamping pressure is being exerted on the fixture and not on the step block. See Photo #5 and Diagram #1.

laser_marking_xy_table_5

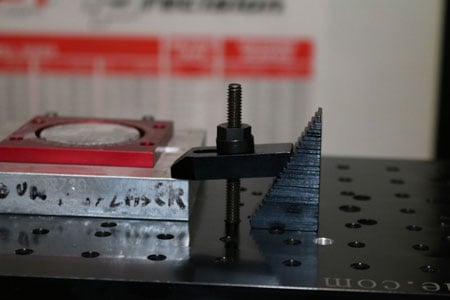

Photo #5: Proper clamping angle.
laser_marking_xy_table_6

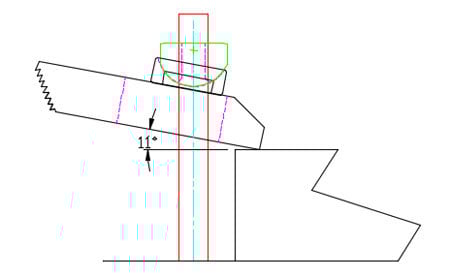

Diagram #1: Proper clamping angle.

The nut and washer that comes with the hold down set (p/n’s 301360 and 301370) have matching concave and convex radius. This design is made so the washer can pivot with the step block clamp angle to keep the full surface of the washer in contact with the clamp. The clamp can be tilted up to an angle of 11 degrees. See Diagram #1 above.

Here are some other methods for using a combination of the ¼” clamps and the locating pins to locate fixtures on the tooling plate.

If your fixture is too short to locate it squarely against the locating pins, you can use parallel bars to establish a square surface for your fixture. See photos #6 thru #9 below.

laser_marking_xy_table_7

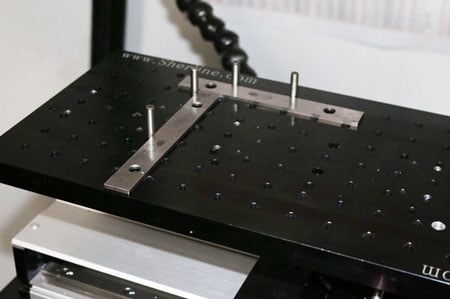

Photo #6: Using parallel bars to establish a square edge against the locating pins. Note: ¾” wide parallel bars and smaller will fit between the pins on the tooling plate.
laser_marking_xy_table_8

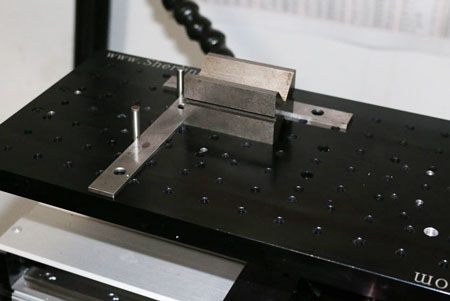

Photo #7: Locating a V block against the parallel bars.

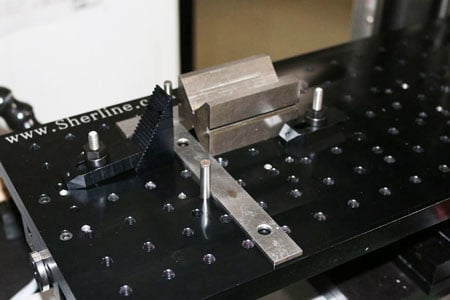

laser_marking_xy_table_9
Photo #8: Using one clamp to wedge the V block against the parallel bars, while using the other clamp set as a part stop.

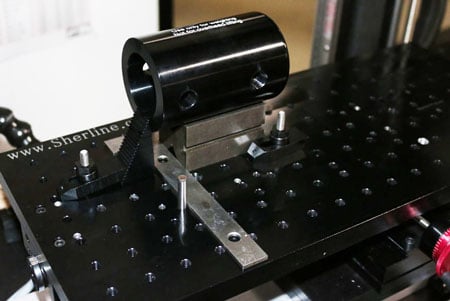

laser_marking_xy_table_10
Photo #9: Final set up with part in place.

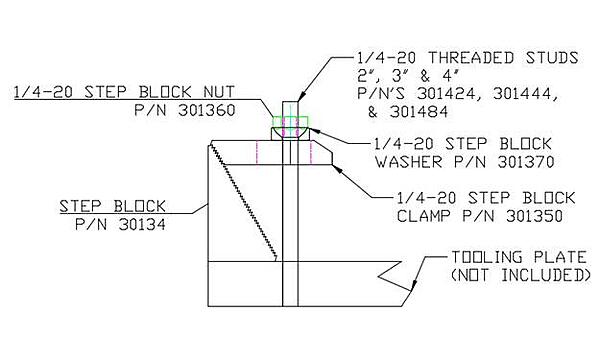

laser_marking_xy_table_11



P/N

Description

Price

3014

1/4" Hold-Down Block Set (2 of each part listed below)

$51.98

30134

(2) Step Block

$7.02

301350

(2) 1/4" Step Block Clamp

$15.00

301360

(2) 1/4" Step Block Hold Down Nut

$14.64

301370

(2) 1/4" Step Block Hold Down Nut Washer

$7.56

301424

(2) 1/4-20 x 2" Hold Down Stud

$2.08

301444

(2) 1/4-20 x 3" Hold Down Stud

$2.41

301464

(2) 1/4-20 x 4" Hold Down Stud

$3.27

 Laser Marking System Quote Laser Marking Applications

Topics: Laser Engraving, External Axis Controller, X/Y Tooling Plate
