Laser Engraving Gold Plating

Industry: Automotive Aftermarket

Material: Gold Plating

Type of Marking: Surface etch

Type of Laser: 20 W laser

Mark content: Logo + text "Pasternak" 0.020" high

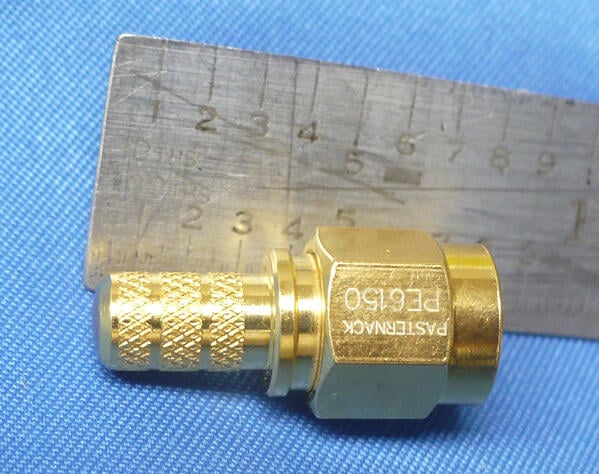

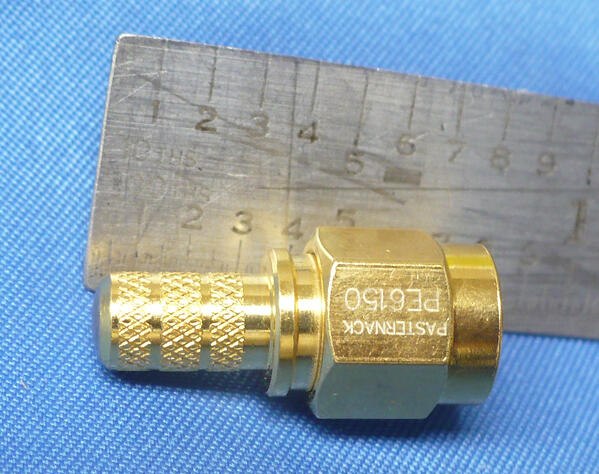

The gold plated connector body parts were marked using a Jimani Langolier Class IV open table 20 Watt fiber laser using a 254mm lens.

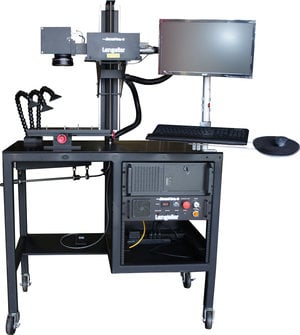

A Jimani Langolier Fiber Laser Marking System is a turn key system and an amazingly versatile tool. The workstation's long Z Axis adjustment can place the focusing lens as high as 29 inches above the marking surface. The system easily accommodates long focal length lenses, parts fixtures and large or tall parts. The industry standard 19" rack mount computer and Langolier Fiber Laser Controller are housed in the workstation frame making the unit completely self contained with the exception of a single 115 VAC household outlet. Mounted on casters, the system, if need be, can be moved from one work area to another without being "tethered" by water or high voltage connections. All Langolier fiber laser marking systems are supplied with Prolase, a user friendly, proven, robust laser marking systems software package.

Laser engraving gold plate is just one of the many ways to use our laser marking systems. Check out our applications for more ideas.
