This post walks through both sides of that equation without a predetermined answer. Sometimes outsourcing is the right call for years. Sometimes the numbers tip toward in-house faster than you'd expect. The Ackley Metal Products story at the end of this post illustrates both — they outsourced to Jimani's job shop for years before the volume math shifted, and the transition was smoother than they anticipated precisely because they understood the true cost model before committing.
Here's how to think through it clearly.
The capital cost of a fiber laser marking system is only the starting point. A complete in-house cost model needs to include fixturing, process validation, operator training, consumables, facility prep, and the scrap risk carried during the learning curve — costs that routinely add 30–60% on top of the equipment price in the first year of operation.
Start with the equipment itself. A capable desktop fiber laser system — 30 to 60 watts, JPT MOPA laser, appropriate lens and software — runs under $15,000 at the entry level. That buys you a functional system with a genuine marking field and the software to drive it. It does not buy you a production-ready operation.

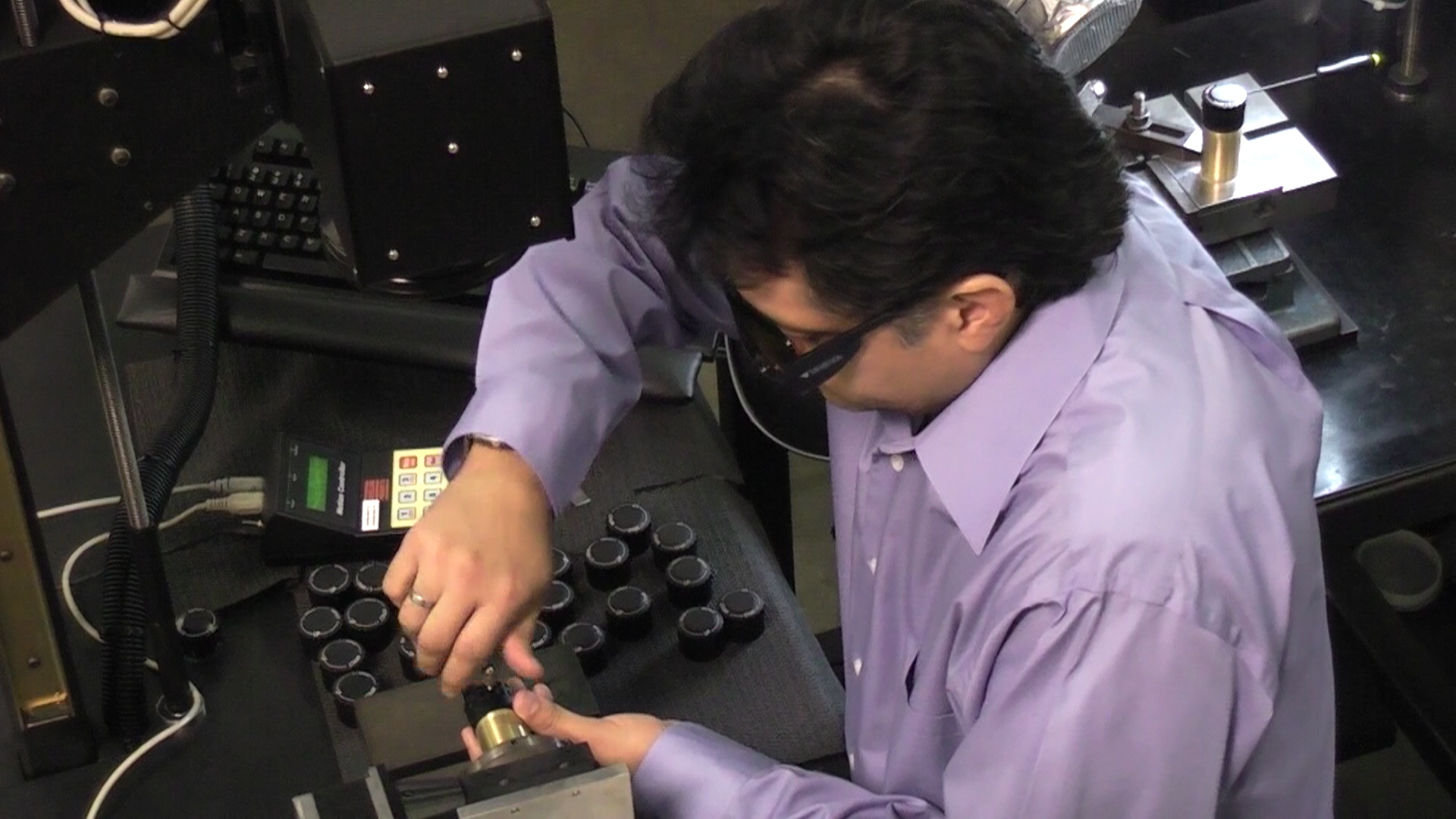

Fixturing is the cost that blindsides most shops. Parts don't float under the lens by themselves. For each part number you intend to mark, you need a fixture that holds it repeatably at the correct focal distance, in the correct orientation, with enough stability that the mark lands in exactly the right place every cycle. Simple fixtures can be machined in-house for a few hundred dollars. Complex fixtures for irregular geometries — or multi-cavity fixtures to run several parts at once — can run into the thousands, and you need one for every part type. If you're bringing in ten part numbers on day one, that fixture cost adds up fast.
Validation is often the largest hidden cost in regulated industries. Aerospace, medical device, and firearms applications don't just require a mark — they require a mark that meets a specific standard, at a verified depth or contrast, with documented process parameters. If your parts carry a UID requirement under MIL-STD-130 or a 2D Data Matrix code that must pass an ISO/IEC 15415 grade verification, someone has to develop the process, run qualification samples, document the parameters, and get the results approved. That process development work — done properly — is measured in weeks and engineer-hours, not hours. Jimani's job shop carries that expertise already. When you bring the work in-house, you're buying the capability, not just the equipment.
Training matters more than most buyers expect. Running a fiber laser marker well — dialing in speed, power, and pulse frequency for a new material; troubleshooting a mark that's coming out gray instead of white on anodized aluminum; understanding why a Data Matrix code that looks readable to the eye is failing a verifier — takes time to learn. Most system vendors include a day of training at the facility. That gets a new operator functional. It does not make them competent on a difficult application.
| Cost Category | Typical Range | Notes |
|---|---|---|
| Equipment (30–60W fiber laser system) | $12,000–$45,000+ | Depends on configuration, wattage, enclosure, software |
| Fixturing (per part number) | $200–$3,000+ | Higher for complex geometry or multi-cavity setups |
| Process development / validation | $2,000–$15,000+ | Scales with number of materials, standards compliance required |
| Operator training (ramp time) | 2–8 weeks productivity loss | Depends on application complexity |
| Scrap risk during ramp | Varies by part value | Marking is permanent; mis-marks on high-value parts are expensive |
| Facility prep (power, ventilation) | $500–$5,000 | 115VAC 15A service required; fume extraction recommended |
The scrap risk deserves its own attention. Laser marking is permanent. A mark applied in the wrong location, with the wrong content, or at insufficient depth on a $400 machined part is a $400 mistake — and it happens during the learning curve. High-value part types carry more risk, and that risk should be costed into the first-year calculation before committing.
Laser marking job shops typically charge $60–$100 per hour of shop time, with the per-part cost determined by how many parts can be processed per hour. At $80/hour with efficient handling, simple marks on small anodized aluminum parts can run $0.27–$0.30 per part. Complexity, packaging requirements, and setup charges add to that baseline.
The math on outsourcing is usually straightforward for simple, stable work. A logo and serial number on a flat anodized aluminum part, arriving bulk packed, at a shop rate of $80/hour might yield 200–300 parts per hour if handling is efficient. That puts the unit cost at $0.27–$0.40 per part, plus a machine setup charge (typically $30–$60 per job run) and a one-time artwork or programming fee if the job requires custom graphics.
Where outsourcing cost models break down is when volume surges unpredictably, when lead time becomes a constraint, or when multiple material types land on the same purchase order. A job shop calibrated for your normal volume will have to push you to the back of the queue when you suddenly need 5,000 parts in four days. Rush premiums are real. And if your parts span five different materials — anodized aluminum, bare stainless, hard chrome, titanium, and coated steel — each one requires separate process parameters, and a shop charging setup fees per run will bill accordingly.
There are also indirect costs that rarely appear on the invoice but show up in operations. Packaging and shipping carry both cost and risk. Lead time variability forces upstream buffer stock. The coordination overhead of managing a vendor relationship — sending POs, approving proofs, tracking shipments, handling re-marks — consumes time that doesn't appear on the per-part calculation but absolutely has value. If your production schedule is tight and your marking vendor slips a day, the cost of that slip can exceed the cost of the marking itself.
Outsourcing laser marking generally makes more economic sense when annual volume is low or highly variable, when you mark a wide range of materials that each require distinct process development, or when your production takt time can't absorb the ramp period needed to get an in-house operation running cleanly.
Volume volatility is the clearest case. If you run 500 parts this month and 5,000 the next, in-house capacity either sits idle or gets overwhelmed. A job shop absorbs that variability without capital cost. The per-part price is higher than what you'd pay at scale in-house, but you're not paying for idle machine time, and you don't have a fixed labor cost sitting in your overhead structure when the order book thins out.
Material breadth is the other strong outsourcing argument. Each material type — bare aluminum versus hard anodized aluminum versus stainless steel versus titanium — behaves differently under a fiber laser. Process parameters that work on Type II anodize produce a completely different result on hard anodize, which is denser, thicker, and requires higher power and more passes to achieve a clean mark. Getting each material dialed in takes time and, in regulated applications, formal process validation. If you mark ten different materials in small batches, you are effectively running ten different processes. A competent job shop has already absorbed that development cost across its customer base.
The takt time argument is subtler but worth taking seriously. If your production line runs at a pace that requires marking to happen in-line or within a narrow time window, and you don't have the throughput data to know whether your in-house system can keep up, outsourcing during a growth period lets you measure real demand before committing capital. You learn what you actually need, rather than specifying equipment against an assumption.
"Our last supplier littered us with late deliveries and an unacceptable scrap rate. Jimani, on the other hand, was quite the opposite — snappy turnaround times and a very high acceptance rate." — Alan Ackley, VP, Ackley Metal Products Inc.
Ackley Metal ran laser marking through Jimani's job shop for years before their volume justified bringing a system in-house. That period wasn't wasted — they were building the volume history and process knowledge that eventually made the in-house decision obvious rather than speculative.
A laser marking feasibility trial should produce three outputs before you commit to equipment: a documented set of proven process parameters for each part type you intend to mark, a realistic throughput measurement that accounts for actual handling time, and a clear acceptance standard against which production marks will be judged.
Most buyers skip the trial entirely, or run one that's too limited to be useful. They send five sample parts to a vendor, get back clean marks, and conclude the process is straightforward. What they haven't measured is what happens at volume with operator variability, fixture wear, and part-to-part dimension tolerances. A meaningful trial has to stress those conditions.
Jimani has worked through this process with customers on both ends of the outcome. Some companies run the numbers and stay in the job shop indefinitely because the volume math never tips. Others, like Ackley Metal Products, use the trial period to build the confidence and the parameter library that makes the eventual transition to in-house essentially seamless.
The decision to bring laser marking in-house is typically justified when annual outsourcing spend approaches the fully loaded first-year cost of in-house ownership — usually somewhere between $40,000 and $80,000 per year depending on system configuration — and when volume is stable enough to sustain consistent machine utilization.
The payback math is not complicated, but it requires honest inputs on both sides. On the outsourcing side, use actual invoiced spend over the past 12 months including setup fees, rush charges, and any freight or handling costs. On the in-house side, build the full year-one cost model: equipment plus fixturing plus validation plus training plus ramp-period scrap plus operator labor allocated to the task. Divide by the number of parts you expect to mark in year one. That's your true in-house cost per part in year one.
Year two looks very different. Equipment is paid for. Fixtures are built. The operator knows the process. Year-two in-house cost per part often drops to a small fraction of what outsourcing costs at the same volume — primarily labor and the occasional lens cleaning or system calibration check. Fiber lasers don't have consumables and don't require scheduled maintenance, which is one of the reasons the long-run economics of ownership are compelling once the fixed costs are absorbed.
Control is the other driver that the pure cost model misses. When you own the laser, you can turn a job in four hours instead of four days. You can iterate on a new part number without a purchase order and a two-week queue. If a customer pulls in a delivery date, you're not dependent on a vendor's capacity or schedule. That operational flexibility has real value, and it doesn't show up in a cost-per-part calculation.
"The volume was worth the machine investment, and it made business sense. Fortunately for us, Jimani builds and sells the same equipment they use in production — so the decision was easy. They include all the programs they used and settings, so the switchover required very little man hours to get production up and going in our facility." — Alan Ackley, VP, Ackley Metal Products Inc.
Ackley's experience captures what makes a well-managed outsource-to-in-house transition work: the job shop had already solved the hard problems. Process parameters were documented. Marking programs were built and proven on production volumes. The equipment going into Ackley's facility was identical to what Jimani had been running on their parts — same laser, same software, same lens configuration. The machine was picked up one afternoon and running production parts the next morning. That doesn't happen by accident. It happens when the trial period is used deliberately, not just as a pricing exercise.
