Posted by Jim Earman ● Tue, Feb 08, 2011 @ 07:49 AM

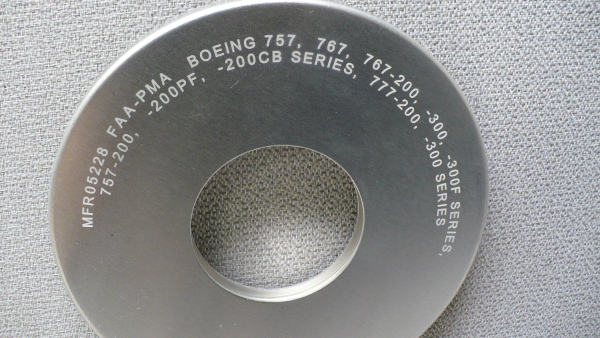

Laser Marking Aluminum Filter Housing Endplate


Industry: Aerospace

Part Type: Filter Housing Endplate - 6" diameter

Material: Anodized Aluminum

Mark Data Type: Text

Laser Mark Type: Surface Etching


laser marking aluminum, laser engraving aluminum, deep laser engraving aluminum, laser marking tooling, aluminum laser mark, fiber laser, fiber laser system

The parts were marked using a Jimani Langolier Class IV open table 50 watt fiber laser in order to attain the maximum marking spedd.  A 254mm lens was used and the mark time is about 12 seconds for the entire part.



laser marking aluminum, laser engraving aluminum, deep laser engraving aluminum, laser marking tooling, aluminum laser mark, fiber laser, fiber laser system

A Jimani Langolier Fiber Laser Marking System is a turn key system and an amazingly versatile tool. The workstation's long Z Axis adjustment can place the focusing lens as high as 29 inches above the marking surface. The system easily accomodates long focal length lenses, parts fixtures and large or tall parts. The industry standard 19" rack mount computer and Langolier Fiber Laser Controller are housed in the workstation frame making the unit completely self contained with the exception of a single 115 VAC household outlet. Mounted on casters, the system, if need be, can be moved from one work area to another without being "tethered" by water or high voltage connections. All Langolier fiber laser marking systems are supplied with Prolase, a user friendly, proven, robust laser marking systems software package.

Click me

Topics: text, Laser Etching, open table, 50 watt fiber, aerospace, aluminum
