Laser Marking Stainless Steel Platter for Automotive Aftermarket

Industry: Automotive Aftermarket

Part Type: 18” diameter platter

Material: Polished Stainless Steel

Mark Data Type: Logo

Laser Mark Type: Outline is deep laser engraving, white is surface marking

The stainless steel parts were marked using a Jimani Langolier Class IV open table 20 Watt fiber laser using a 254mm lens.

The laser engraving size is about 3” high.

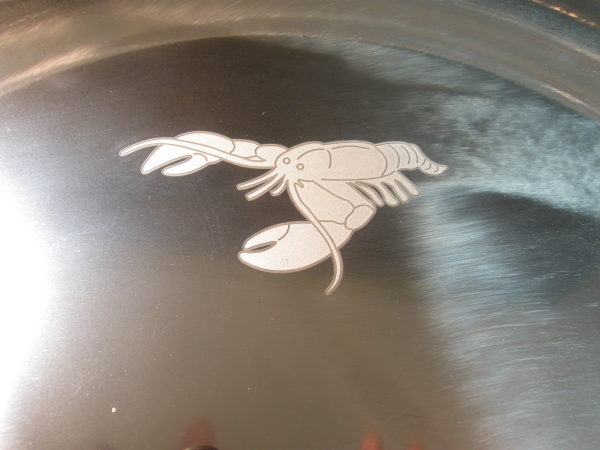

One set of laser marking parameters is used for the deep outline and different parameters used for the white look on lobster body.

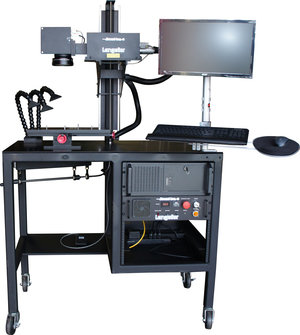

A Jimani Langolier Fiber Laser Marking System is a turn key system and an amazingly versatile tool. The workstation's long Z Axis adjustment can place the focusing lens as high as 29 inches above the marking surface. The system easily accomodates long focal length lenses, parts fixtures and large or tall parts. The industry standard 19" rack mount computer and Langolier Fiber Laser Controller are housed in the workstation frame making the unit completely self contained with the exception of a single 115 VAC household outlet. Mounted on casters, the system, if need be, can be moved from one work area to another without being "tethered" by water or high voltage connections. All Langolier fiber laser marking systems are supplied with Prolase, a user friendly, proven, robust laser marking systems software package.
